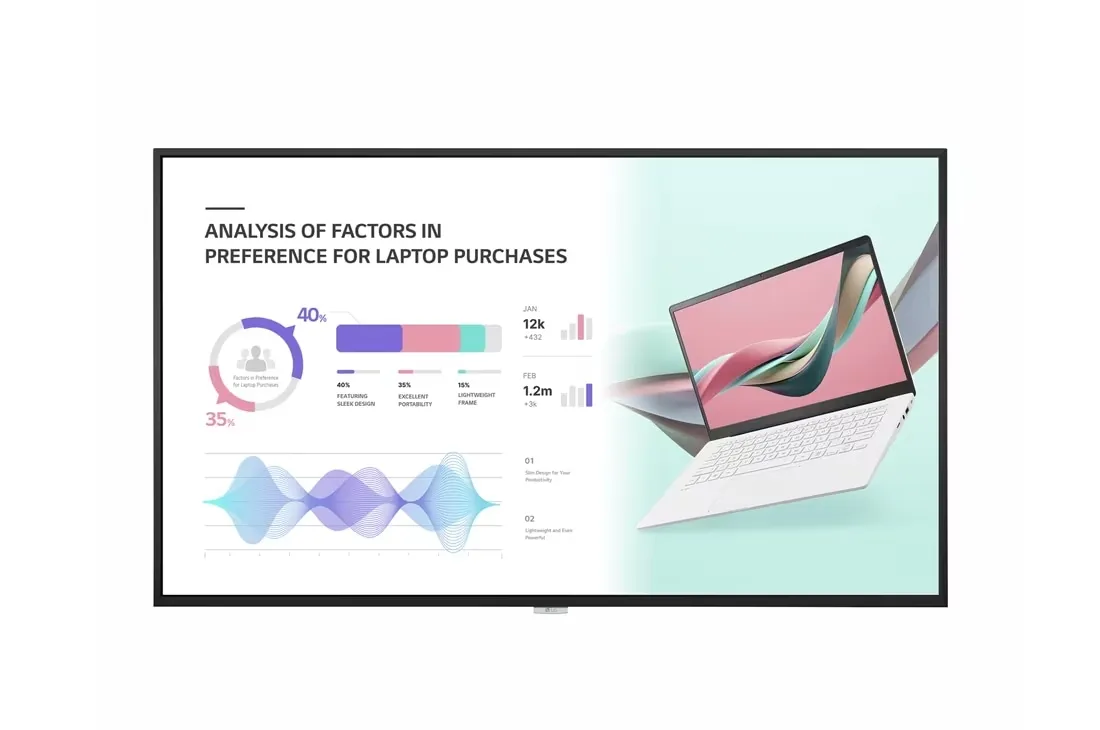

Digital Signage 49UH5J-H

Description

PANEL

Screen Size : 49
Panel Technology : IPS
Back Light Type : Edge
Aspect Ratio : 16:9
Native Resolution : 3840×2160 (UHD)
Refresh Rate : 60Hz
Brightness : 500nit (Typ.)
Contrast Ratio : 1,000:1
Dynamic CR : 1,000,000:1
Color gamut : BT709 95%
Viewing Angle (H x V) : 178 x 178
Color Depth : 10bit(D), 1.07Billion colors
Response Time : 8ms (G to G)
Surface Treatment(Haze) : 0,28
Life time : 50,000Hrs (Min.)
Operation Hours (Hours/Day) : 24/7
Portrait / Landscape : Yes / Yes

CONNECTIVITY

Input : HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
Output : HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

Bezel Color : Black
Bezel Width : T/R/L: 9.9mm, B: 14.4mm
Weight (Head) : 15.4Kg
Weight (Head+Stand) : 16.0Kg
Packed Weight : 18.8 kg
Monitor Dimension(W x H x D) : 1098.6 x 644.5 x 39.9mm(with LG Logo)
Monitor Dimensions with Stand(W x H x D) : 1098.6 x 694.3 x 290.0mm
Carton Dimensions(W x H x D) (Box outer size) : 1197.0 x 775.0 x 162.0mm
VESA™ Standard Mount Interface : 300 x 300

KEY FEATURE

Key features : Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

Operation Temperature : 0°C to 40°C
Operation Humidity : 10 % to 80 %

POWER

Power Supply : AC 100-240V~, 50/60Hz
Power Type : Built-In Power

POWER CONSUMPTION

Typ. : 100W
Max. : 140W
BTU (British Thermal Unit) : 342 BTU/Hr(Typ.), 478 BTU/Hr(Max.)
Smart Enegy Saving(~70%) : 70W
DPM : 0.5W
Power off : 0.5W

SOUND

Speaker : Yes

CERTIFICATION

Safety : CB / NRTL
EMC : FCC Class A / CE / KC
ErP / Energy Star : Yes (NewErP) / Yes

OPS COMPATIBILITY

OPS Type Compatible : Yes

SOFTWARE COMPATIBILITY

SuperSign CMS : Yes
SuperSign Control / Control+ : Yes / Yes
SuperSign WB : Yes
SuperSign Media Editor : Yes
Promota : Yes (Not available for EU/CIS)
Mobile CMS : Yes
Signage365Care : Yes

LANGUAGE

OSD : English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY

Basic : Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional : Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)

SPECIAL FEATURE

Tilt (Facedown) : Yes (Max 30º degree, 30ºC temperature, humidity 50%)
IP Rating : IP5x
