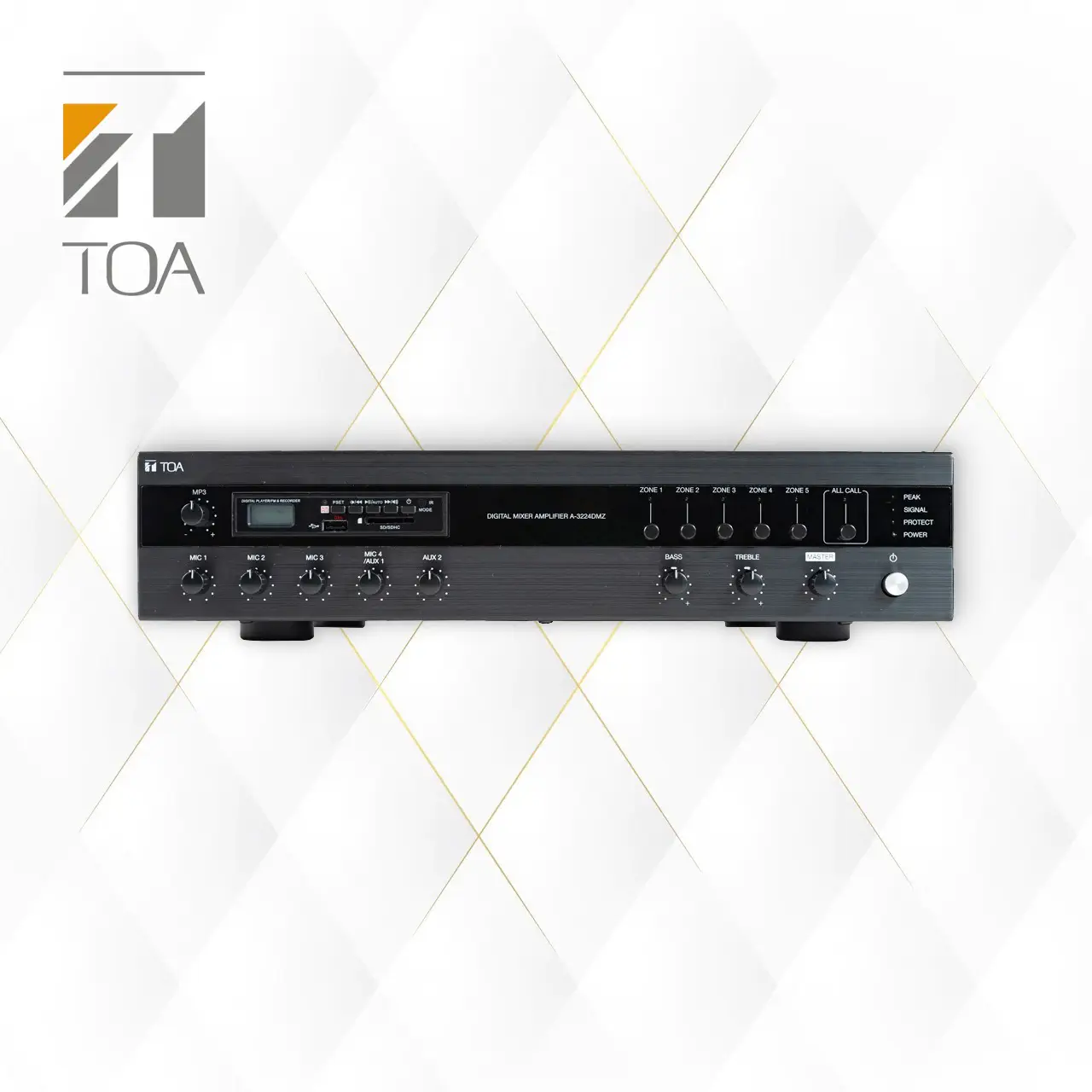

ZA-3224DMZ-AS Digital Amplifier

Description

Power Source : 100 – 240 V AC, 50/60Hz
Rated Output : 240 W
Power Consumption : 62 W (AC operation at 1/8 maximum output without clip)
Frequency Response : 50 – 20,000 Hz
Input
MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45
MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record

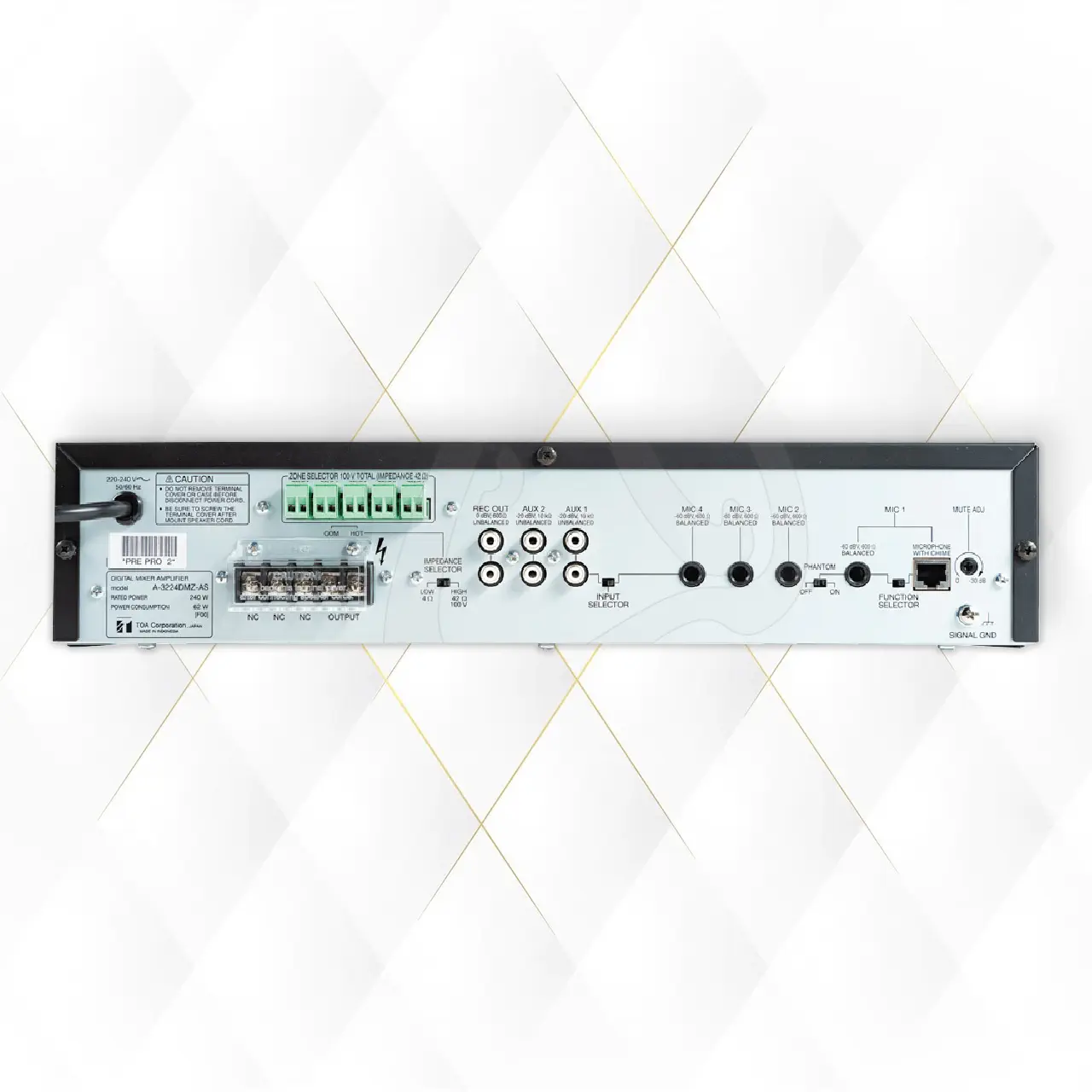

Output
Speaker out: Speaker Output in screw type terminal
Direct line (selectable): 42 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
5-zone selector (all zones simultaneously selectable)
Phantom Power : DC +21 V (MIC 1)
S/N Ratio : Over 60 dB
Total Harmonic Distortion : Under 1% at 1 kHz, 1/3 rated power
Tone Control
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting : MIC 1: Mutes other input signals by 0-30 dB attenuation
Indicator : Power, Signal , Peak, Protect
Ventilation : Fan Cooling
Finish
Panel: ABS resin, black
Case: Steel plate, black
Dimensions : 420 (W) x 100.9 (H) x 357 (D) mm
Weight : 5.1 kg
Accessory : Removable terminal plus (2 pins) x 5
Garansi 1 tahun servis dan suku cadang
*Harga sudah termasuk PPN dan ongkir, tidak termasuk material dan jasa instalasi.
