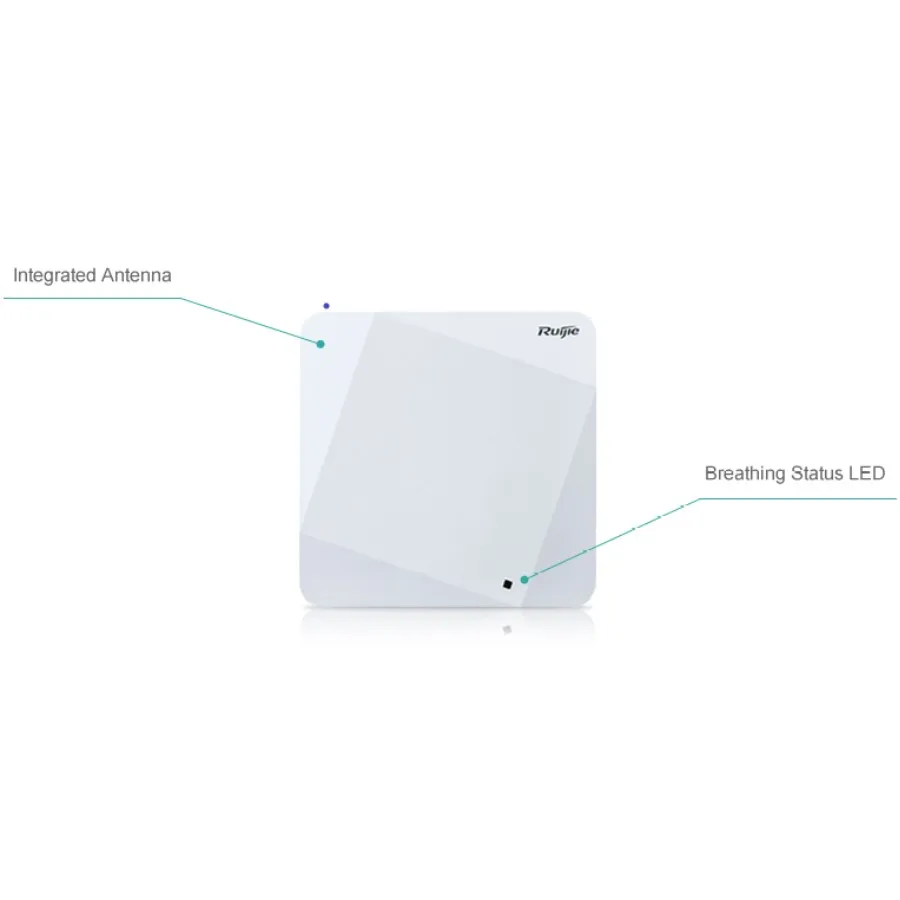

Wireless Access Point RUIJIE RG-AP720-L

Deskripsi

Model: Ruijie AP720-L;
Target Deployment: Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel;
Type: Indoor Ceiling/Wall-mounting;
Radio: Concurrent Dual-band;
Protocol: 802.11a/b/g/n/ac Wave2;
Operating Bands: 802.11b/g/n: 2.4GHz to 2.483GHz;
Operating Bands: 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries);
Antenna: Built-in Omni-directional Antenna;
Antenna Gain: 2.4G: 3dBi;
Antenna Gain: 5G: 3dBi;
Max Throughput: Maximum throughput of 2.4G: 300Mbps;
Max Throughput: Maximum throughput of 5G: 867Mbps;
Max Throughput: Maximum throughput per AP: 1167Mbps;
Modulation: OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps;
Modulation: DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps;
Modulation: MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM;
Receiver Sensitivity: 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）;
Receiver Sensitivity: 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps）;
Receiver Sensitivity: 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）;
Receiver Sensitivity: 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9);
Receiver Sensitivity: 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9);
Receiver Sensitivity: 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9);
Spatial Streams: 2×2;
Maximum Transmit Power: 100mW;
IP Rating: IP41;
Ports: 1 10/100/1000BASE-T Ethernet uplink;
Ports: Port LAN1 supports PoE;
Ports: 1 Console Port;
Power Supply: local power supply (DC 5V/3A);
(DC Power adapters should be purchased from third-party vendors separately if needed.): PoE (802.3af）;
Power Consumption: <12.95W;
Maximum clients per AP: 256;
BSSID capacity: 32;
Remote Intelligent Perception Technology (RIPT): Support;
Intelligent load balancing based on the number of users or traffic: Support;
STA control: Support;
Bandwidth control: Support;
Preference for 5GHz (band select): Support;
Band Steering (5G Priority): Support;
PSK, Web, 802.1x authentication: Support;
PPSK authentication: Support;
Data encryption: WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits);
PEAP authentication: Support
User isolation: Support;
Rogue AP detection and countermeasure: Support;
RADIUS: Support;
Wireless Intrusion Detection System(WIDS): Support;
Wireless Intrusion Prevention System (WIPS): Support;
IPv4 address: Static IP address or DHCP reservation;
IPv6 address: Manual or automatic configuration;
Multicast: Multicast to unicast conversion;
Network management: SNMP v1/v2C/v3, Telnet, TFTP, Web management;
Cloud AC management: Support;
FAT/FIT switching: Support;
Lock: Support;
LED Indicators: 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode);
Wi-Fi Alliance Certification: Support;
Radio Standard: EN300 328;
Radio Standard: EN301 893;
EMC Standard: GB9254;
EMC Standard: EN301 489-1;
EMC Standard: EN301 489-17;
EMC Standard: EN 55032;
EMC Standard: EN 61000;
EMC Standard:  EN 55035;
Safety Standard: GB4943;
Safety Standard: EN/IEC 60950-1;
Temperature: Operating Temperature: -10°C to 50°C;
Humidity: Operating Humidity: 5% to 95% (non-condensing);
Humidity: Storage Temperature: 5% to 95% (non-condensing)
